HSKB1250, Skidding System, Skid Shoe Beam, 25 Ton Push Capacity

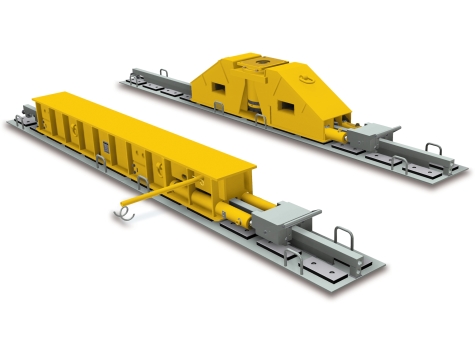

NEW The HSK skidding system is comprised of a series of skid shoes powered by hydraulic push-pull cylinders, travelling over a pre-constructed track

A series of special PTFE coated blocks are placed on the skid-tracks. The PTFE surface is matched with a sliding plate under the Enerpac skid shoes, designed to achieve minimum friction coefficients. The skid shoes are connected by hoses to a hydraulic electric or diesel driven powerpack.

• PTFE skid pads with dimpled surface for low friction and long lifetime
• Easy to replace skid pads, no tools necessary
• Bi-directional operation using push/pull cylinders avoid the need to reposition cylinders for switching direction
• Large load support surface on the skid beams for distributing load
• Bottom of skid shoes equipped with stainless steel sliding plates
• HSKB-Series (Skid Shoe Beam) utilizes a tall skid shoe with builtin push/pull cylinders. Skidding direction can be easily switch by flipping a lever on the attached gripper box.
• Skid track sold separately
• Low-height versions available (See HSKLH2000 model)
