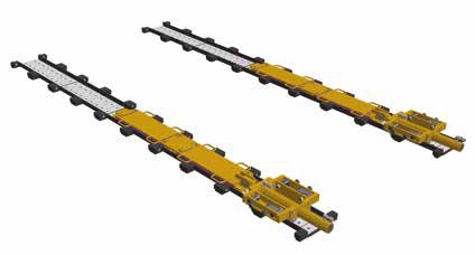

LH400SKJ, Low Height Skidding System Set, 25 Ton Push Capacity

Our Low Height Skidding System is a modular system that can jack and slide heavy loads over a pre-constructed track. The Low-Height Skidding System is comprised of a series of skid beams moved by hydraulic push-pull units, travelling over a pre-constructed track. A series of special PTFE-coated pads are placed on the skid tracks to reduce friction. The push-pull units are powered by a standard Enerpac Split Flow Pump to ensure each skid beam travels synchronously.

The LH400SKJ Low Height Skidding Set comes with two skidding units that will support up to 400 tons in total. The Split-Flow Pump has 2 outlets and can be easily towed on the pump cart. After the job is complete, components can be stowed on the included storage and transport frame.

This set includes:

• 2 push-pull units
• 4 skid beams
• 10 skid tracks
• 1 split-flow pump
• 1 pump cart
• 4 hoses
• 1 storage and transport frame

Features & Benefits include:

• 2-in-1 track design for added support
• Intuitive pump control
• Easily reversible to change skidding direction
• Portable design for quick setup
