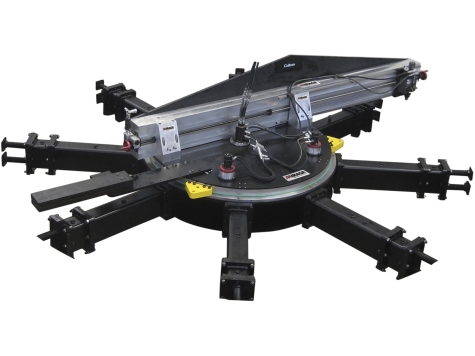

OM6000, Orbital Milling Machine, 6000 mm (236") Max Machining Diameter

A unique concept for the machining of flanges which provides fast material removal with high accuracy. Specifically developed for the machining of large flanges.

Key Features

• Precision preloaded Linear rotary drive
• Adjustable fast set clamping jaws
• Hydraulic anti-backlash drive
• Radial contour milling feed

Applications
Applications include; machining large flanges, crane bearing faces, repairing drag lines, machining ship thruster flanges, wind turbine blade root end milling and wind tower flange machining

Included as standard with the machine;
Drive ring, drive motors and reduction gearbox
Facing feed /direction gearbox and pick up gearbox
Milling facing arm and 90mm column spindle internal chuck base assembly
Jaw blocks and 8 off clamping jaws 4 of which are adjustable
Toolkit
Hose kit
Toolkit
Centre distributor
All required mounting blocks and extensions
Storage / shipping crate
CE certificate
Packing list and manual
