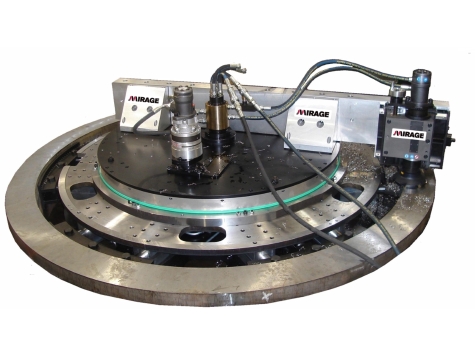

WP2500-10, Orbital Milling Machine Blade Clamping Module, 2522 mm (99") Max Clamping Diameter

A range of orbital milling machines designed specifically for the wind power manufacturing industry. The machines have an in-built degree of flexibility to cope with new blade designs.

Key Features

• High torque anti backlash drive for operation in with anti backlash gearing
• Mounting system options for standard flanges or blade production
• Fast mount patented hydraulic clamp
• Minimal blade distortion
• Accurate and repeatable process time
• Trolley systems available –no need for cranes
• Adjustable drive facing arm
• Achieves current industry flatness for root diameters of +/-0.15mm (Flatness requirements can fluctuate relative to the root diameter).

Applications
Applications for Mirage WP and OM machines include: wind turbine blade root end milling and wind tower flange machining

Included as standard with the machine;
Rotational drive motor & reduction gearbox
Machining facing arm
90mm diacolumn milling spindle
Jaw blocks and 8 off clamping jaws 4 of which are adjustable
Toolkit, Face Mill Cutter and inserts
Internal hydraulic chuck base assembly
Toolkit
CE certificate
Operation / maintenance manual
